  • Name: RG6 TRI-SHIELD
Immediate Inquiry
*Email
*Content
Product Name
Your Name
Company
Tel./Fax
MSN/Skype
  • Specification
  • Packing
  • Electrical Properties

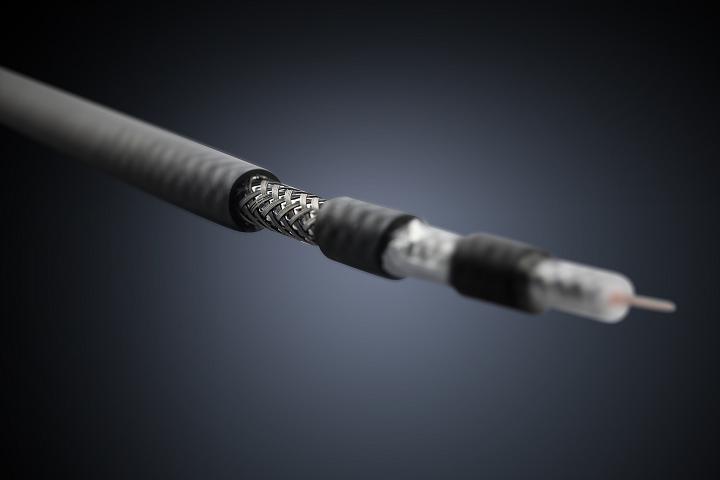

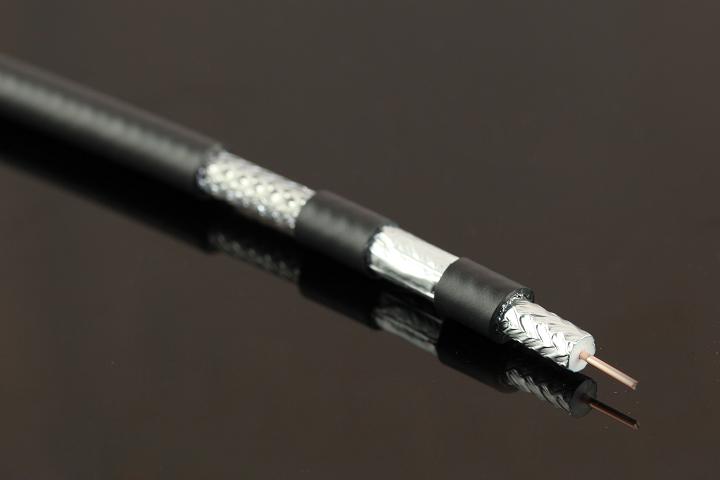

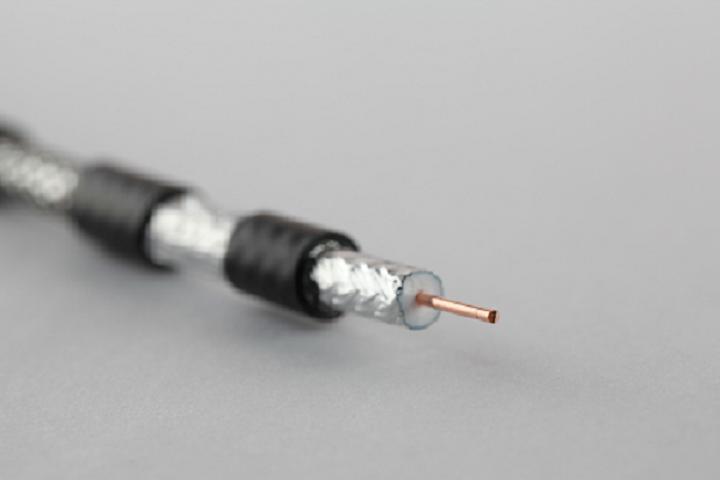

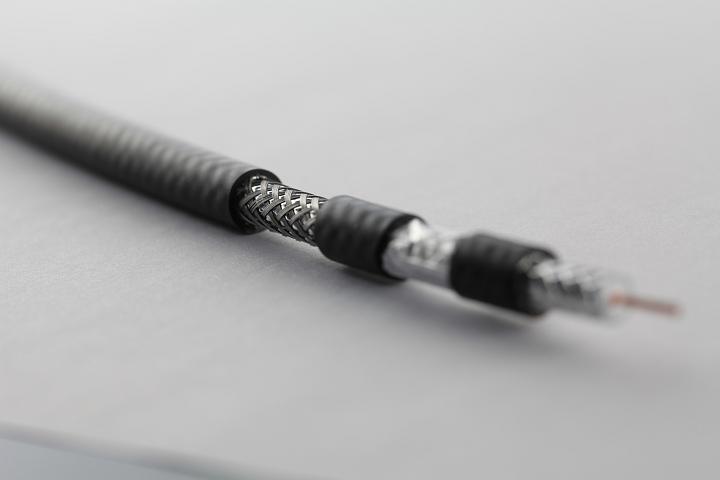

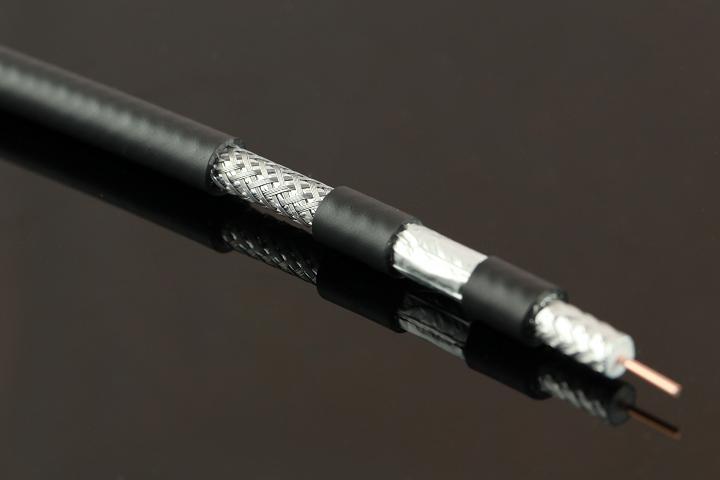

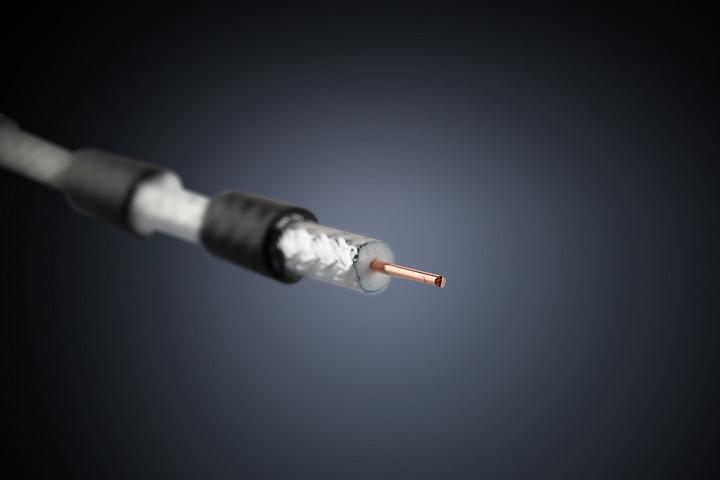

TRI-SHIELD RG6 75 OHMS COAXIAL CABLE
Article No:
TEST IS EXECUTED ON THE SAMPLE DRAWN AT
RANDOM,DETAILS ARE AS FOLLOWS:
PRODUCT DESCRIPTION:
BONDED LAMINATED ALUMINUM TAPE, 60% BRAID, PVC JACKET
CENTER CONDUCTOR: 1.02mm BARE COPPER
DIELECTRIC: GAS EXPANDED POLYETHYLENE
THE FIRST SHIELD: LAMINATED ALUMINUM TAPE BONDED TO DIELECTRIC
THE SECOND SHIELD: 67% COVERAGE ALUMINUM BRAID WIRE
THE THIRD SHIELD: LAMINATED ALUMINUM TAPE
JACKET: PVC
NORMINAL CENTRAL CONDUCTOR DIA. 1.02CCS+/-0.01 mm
NORMINAL INSULATION DIA. 4.57FPE+/-0.10 mm
NORMINAL JACKET DIA. 7.10+/-0.20 mm
NORMINAL CAPACITANCE 50+/-3 pF/m
NORMINAL IMPEDANCE 75+/-3 Ohm
VELOCITY OF PROPAGATION 85%
RETURN LOSS ≥20dB
INSULATION RESISTANCE(20 ºC) MΩ • km ≥5000
DIELECTRIC STRENGTH (CONDUCTOR TO SHIELD) ≥1.6 kV
ATTENUATION TESTED AT 68 ºF(20 ºC)
TESTED AT LENGTH 100m

FOR BEST ELETRICAL PERFORMANCE:
1.PRODUCTS SHOULD BE HANDLED WITH CARE.
2.STRONG ELECTROMAGENTIC FIELDS SHOULD BE AVOIDEO.
3.EXTREMELY HOT AND COLD ENVIRONMENTS SHOULD BE AVOIDED.
Wooden Spool
Spec. H/cm 30CM D/cm 28CM d/cm 10CM T/cm 1.0CM



Carton
Spec. a/cm 31CM b/cm 31CM h/cm 39.5CM
@  Frequency MHz dB/100ft(MAX) dB/100m(MAX)
5 0.58 1.9
55 1.52 5
187 2.85 9.35
211 3.05 10
250 3.3 10.82
300 3.55 11.64
400 4.15 13.61
500 4.66 15.29
600 5.1 16.73
750 5.65 18.54
865 6.1 20.01
1000 6.55 21.49
1450 7.98 26.16
1800 8.76 28.73
2150 10.21 33.5
2250 10.37 34.03
3000 12.04 39.5
