  • Name: CAT6UTP
Immediate Inquiry
*Email
*Content
Product Name
Your Name
Company
Tel./Fax
MSN/Skype
  • Specification
  • Packing
  • Electrical Properties

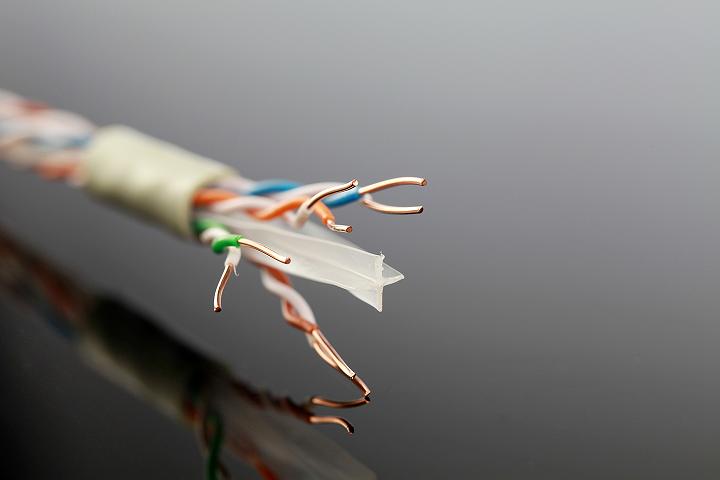

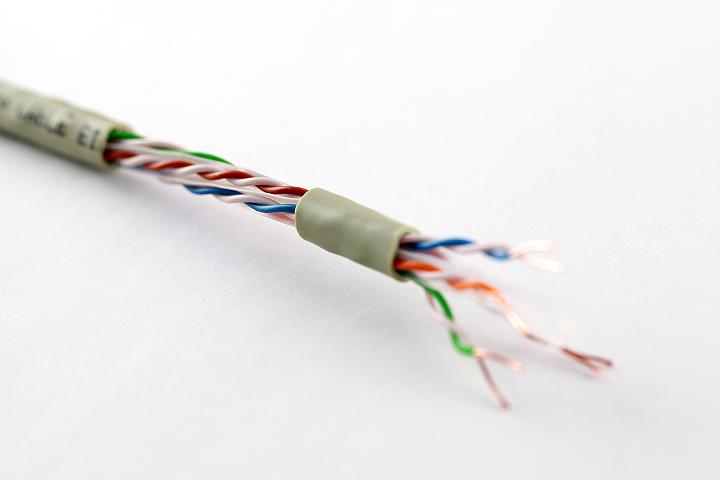

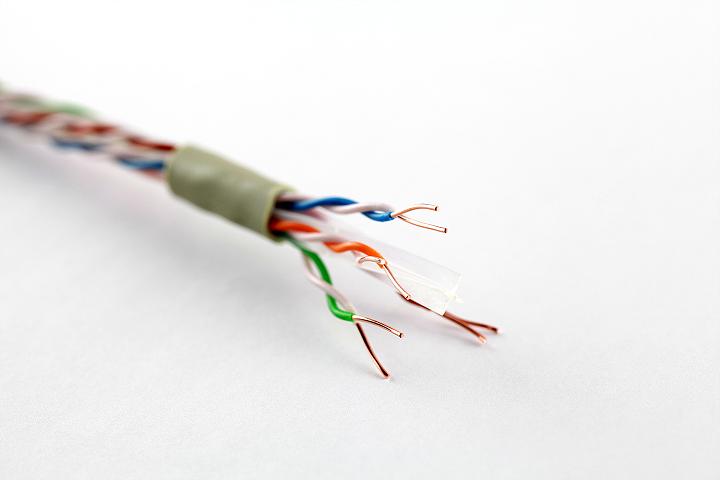

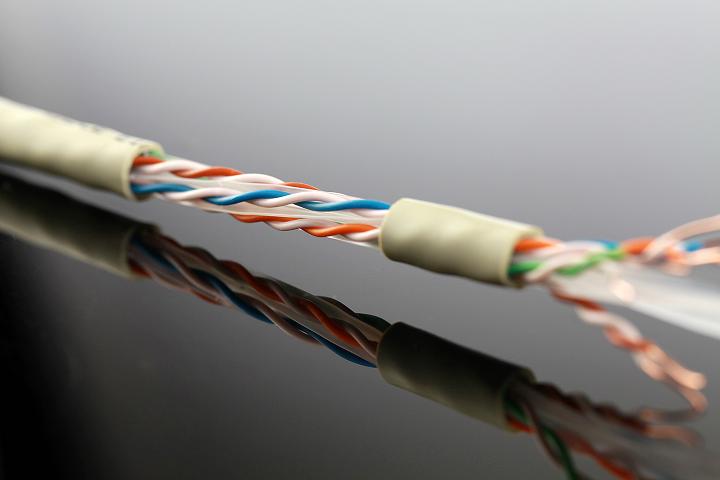

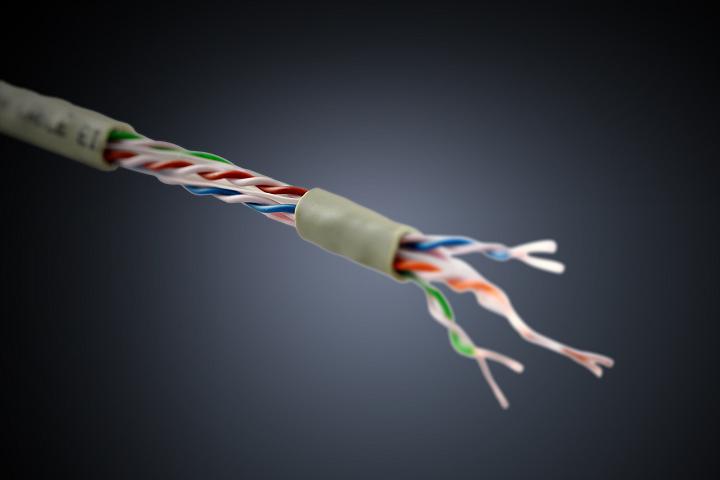

CAT6 UTP
Article No:
TEST IS EXECUTED ON THE SAMPLE DRAWN AT
RANDOM , DETAILS ARE AS FOLLOWS:
PRODUCT DESCRIPTION:
RATED TEMPERATURE: 75℃
REFENRANCE STANDARD: UL444
BARE SOLID COPPER CONDUCTOR
Rohs/REACH COMPLIED PVC JACKET
FLAME TEST: CM, CMR
INSTALLATION TEMPERATURE: -30℃～+50℃
NORMINAL CENTRAL CONDUCTOR DIA. 0.574CU+/-0.005 mm
NORMINAL INSULATION DIA. 1.05 +/-0.03 mm
RIP CORD YES
CROSS YES
JACKET PVC/PE
NORMINAL IMPEDANCE 100+/-15 Ohm
DELAY SHEW ≤45ns
VELOCITY OF PROPAGATION 69%
ATTENUATION TESTED AT 68 ºF(20 ºC)
TESTED AT LENGTH 100m

FOR BEST ELETRICAL PERFORMANCE:
1.PRODUCTS SHOULD BE HANDLED WITH CARE.
2.STRONG ELECTROMAGENTIC FIELDS SHOULD BE AVOIDEO.
3.EXTREMELY HOT AND COLD ENVIRONMENTS SHOULD BE AVOIDED.

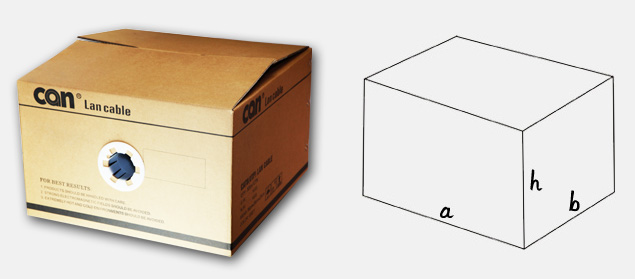

Carton
Spec. a/cm 39CM b/cm 39CM h/cm 23CM
@ Frequency MHz ATT ≤dB/100m RL  ≥dB/100m NEXT  ≥dB/100m PHASE DELAY ≤ns/100m PSNEXT ≥dB/100m ELFEXT  ≥dB/100m PSELFEXT  ≥dB/100m
0.772 1.8 21 76.1 573 74 70 67
1 2 20 74.2 550 72.3 67.8 64.8
4 3.8 24.5 64.9 545 63.3 55.8 52.8
8 5.3 25 60.3 543 58.8 49.7 46.7
10 6 25 58.8 543 57.3 47.8 44.8
16 7.6 25 55.3 541 54.3 43.7 40.7
20 8.5 25 54.1 540 52.8 41.8 38.8
25 9.5 24.3 52.9 538 51.3 39.8 36.8
31.25 10.7 23.6 49.5 536 49.9 37.9 34.9
62.5 15.4 21.4 47.4 536 45.4 31.9 28.9
100 19.8 20.1 44.1 533 42.3 27.8 24.8
200 29 18 38.6 531 37.8 21.8 18.8
250 32.8 17.3 38.9 529 36.3 19.8 16.8
