  • Name: CAT6A
Immediate Inquiry
*Email
*Content
Product Name
Your Name
Company
Tel./Fax
MSN/Skype
  • Specification
  • Packing
  • Electrical Properties

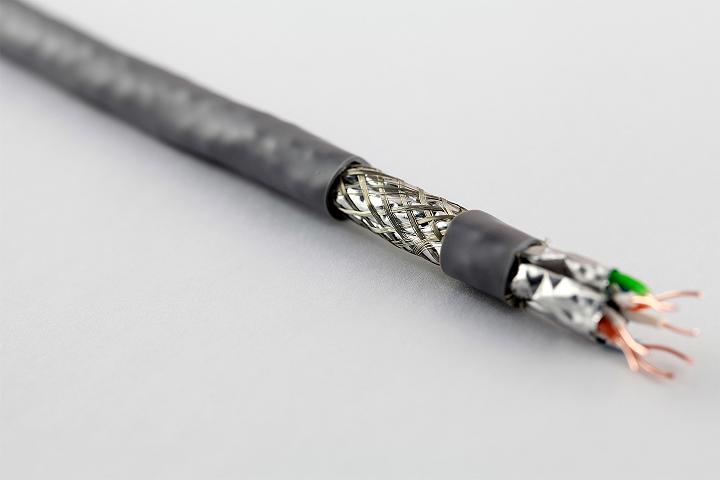

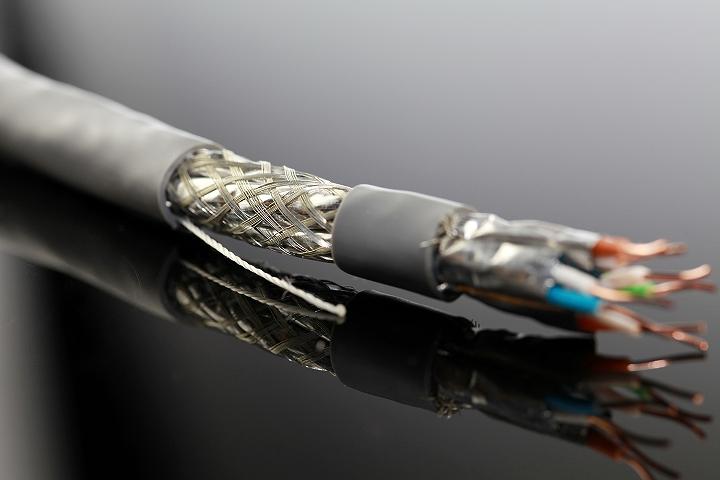

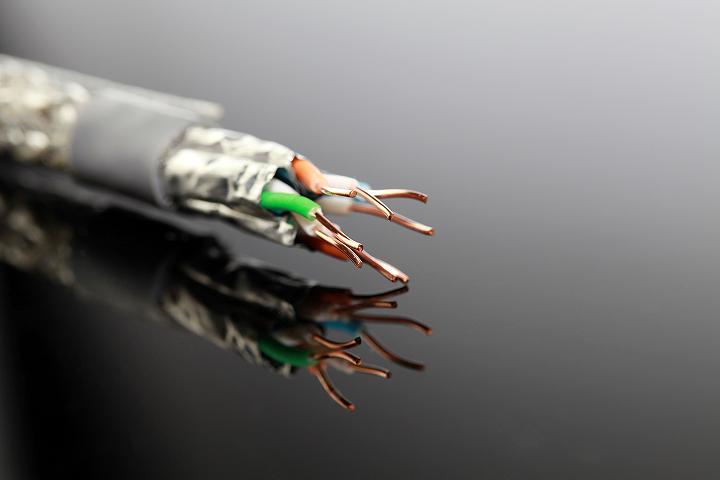

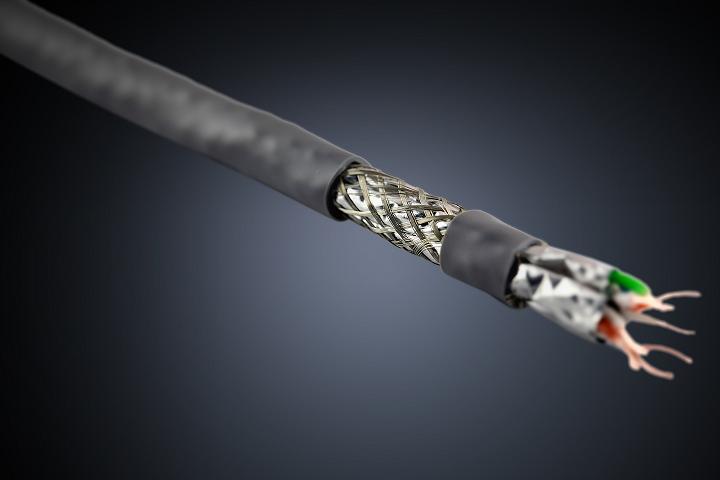

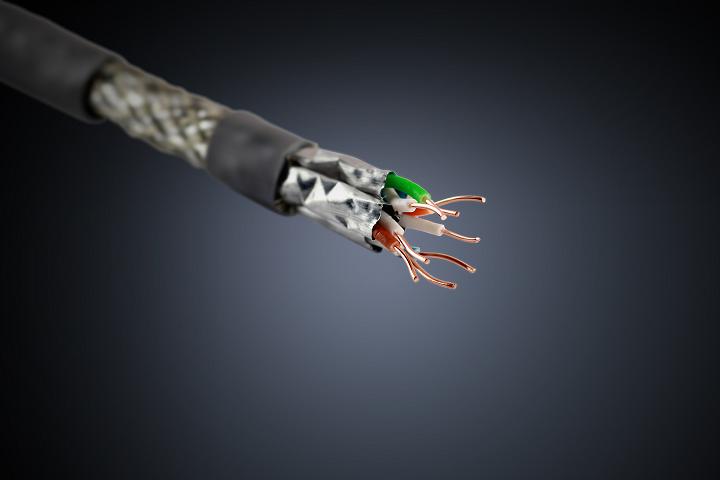

CAT6 A SFTP
Article No:
TEST IS EXECUTED ON THE SAMPLE DRAWN AT
RANDOM , DETAILS ARE AS FOLLOWS:
PRODUCT DESCRIPTION:
RATED TEMPERATURE: 75℃
REFENRANCE STANDARD: UL444
BARE SOLID COPPER CONDUCTOR
Rohs/REACH COMPLIED PVC JACKET
FLAME TEST: CM, CMR
INSTALLATION TEMPERATURE: -30℃～+50℃
NORMINAL CENTRAL CONDUCTOR DIA. 0.574CU+/-0.005 mm
NORMINAL INSULATION DIA. 1.43 +/-0.03 mm
AL FOIL YES
RIP CORD YES
CROSS NO
DRAIN WIRE NO
SHIELD 0.12*80
JACKET PVC
NORMINAL IMPEDANCE 100+/-15 Ohm
DELAY SHEW ≤45ns
VELOCITY OF PROPAGATION 83%
ATTENUATION TESTED AT 68 ºF(20 ºC)
TESTED AT LENGTH 100m

FOR BEST ELETRICAL PERFORMANCE:
1.PRODUCTS SHOULD BE HANDLED WITH CARE.
2.STRONG ELECTROMAGENTIC FIELDS SHOULD BE AVOIDEO.
3.EXTREMELY HOT AND COLD ENVIRONMENTS SHOULD BE AVOIDED.
Wooden Spool
Spec. H/cm 36CM D/cm 31CM d/cm 15CM T/cm 1.1CM



Carton
Spec. a/cm 37CM b/cm 37CM h/cm 32.5CM
@ Frequency MHz ATT ≤dB/100m NEXT  ≥dB/100m ELFEXT  ≥dB/100m
0.772 1.8 76.1 70
1 2 74.2 67.8
4 3.8 64.9 55.8
8 5.3 60.3 49.7
10 6 58.8 47.8
16 7.6 55.3 43.7
20 8.5 54.1 41.8
25 9.5 52.9 39.8
31.25 10.7 49.5 37.9
62.5 15.4 47.4 31.9
100 19.8 44.1 27.8
200 29 38.6 21.8
250 32.8 38.9 19.8
300 34.4 36.9 18.2
500 45.5 33.5 13.6
