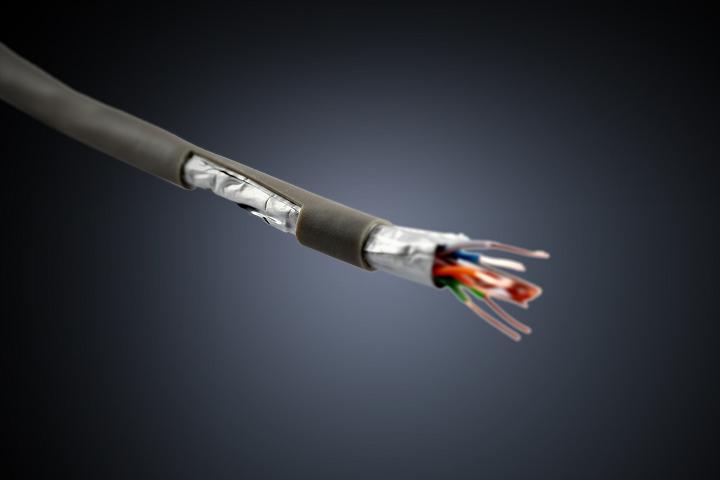

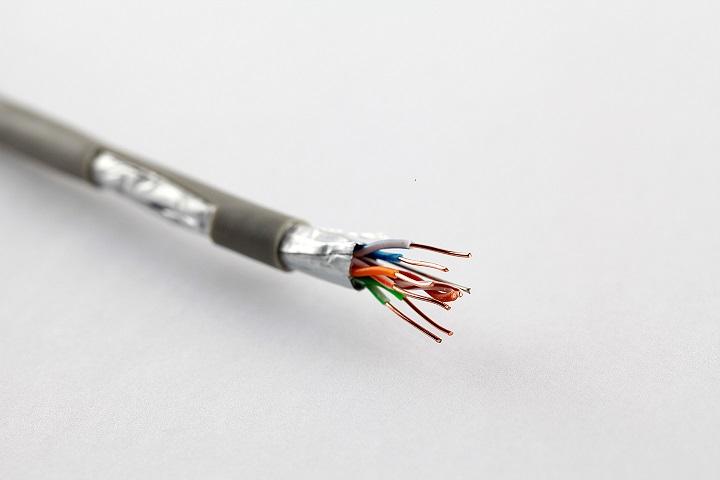

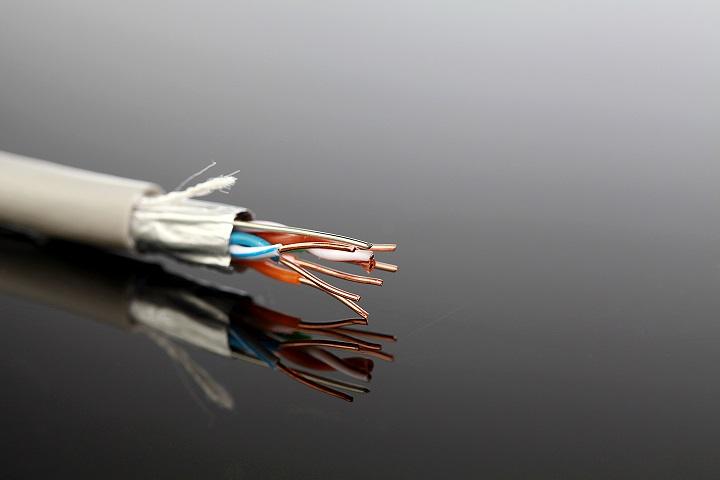

CAT5E FTP
Article No:
TEST IS EXECUTED ON THE SAMPLE DRAWN AT
RANDOM , DETAILS ARE AS FOLLOWS:
PRODUCT DESCRIPTION:
RATED TEMPERATURE: 75℃
REFENRANCE STANDARD: UL444
BARE SOLID COPPER CONDUCTOR
Rohs/REACH COMPLIED PVC JACKET
FLAME TEST: CM, CMR
INSTALLATION TEMPERATURE: -30℃～+50℃
NORMINAL CENTRAL CONDUCTOR DIA. 0.517CU+/-0.005 mm
NORMINAL INSULATION DIA. 0.93 +/-0.03 mm
AL FOIL YES
RIP-CORD YES
DRAIN WIRE YES
JACKET PVC
NORMINAL IMPEDANCE 100+/-15 Ohm
DELAY SHEW ≤45ns
VELOCITY OF PROPAGATION 69%
ATTENUATION TESTED AT 68 ºF(20 ºC)
TESTED AT LENGTH 100m

FOR BEST ELETRICAL PERFORMANCE:
1.PRODUCTS SHOULD BE HANDLED WITH CARE.
2.STRONG ELECTROMAGENTIC FIELDS SHOULD BE AVOIDEO.
3.EXTREMELY HOT AND COLD ENVIRONMENTS SHOULD BE AVOIDED.
Wooden Spool
Spec. H/cm 26CM D/cm 24CM d/cm 10CM T/cm 0.9CM



Carton
Spec. a/cm 53CM b/cm 27CM h/cm 25.5CM
@ Frequency MHz ATT ≤dB/100m RL  ≥dB/100m NEXT  ≥dB/100m PHASE DELAY ≤ns/100m PSNEXT ≥dB/100m ELFEXT  ≥dB/100m PSELFEXT  ≥dB/100m
0.772 1.8 20 67 571 64 65.1 62.1
1 2 20 65.3 570 62.3 63.8 60.8
4 4.1 23 56.3 562 53.3 51.8 48.8
8 5.8 24.5 51.8 551 48.8 45.7 42.7
10 6.5 25 50.3 541 47.3 43.8 40.8
16 8.2 25 47.2 539 44.2 39.7 36.7
20 9.3 25 45.8 536 42.8 37.8 34.8
25 10.4 24.2 44.3 535 41.3 35.8 32.8
31.25 11.7 23.3 42.9 533 39.9 33.9 30.9
62.5 17 20.7 38.4 532 35.4 27.9 24.9
100 22 19 35.3 529 32.3 23.8 20.8
