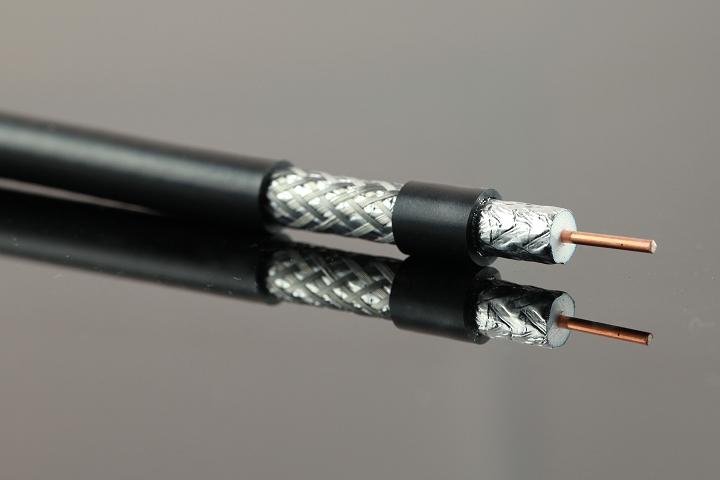

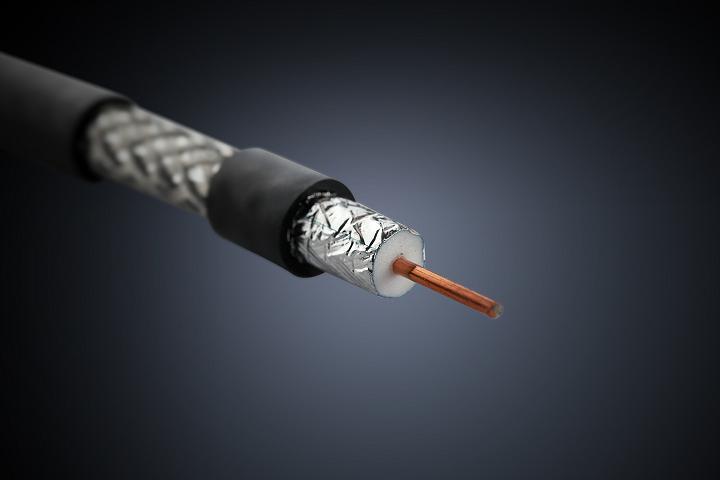

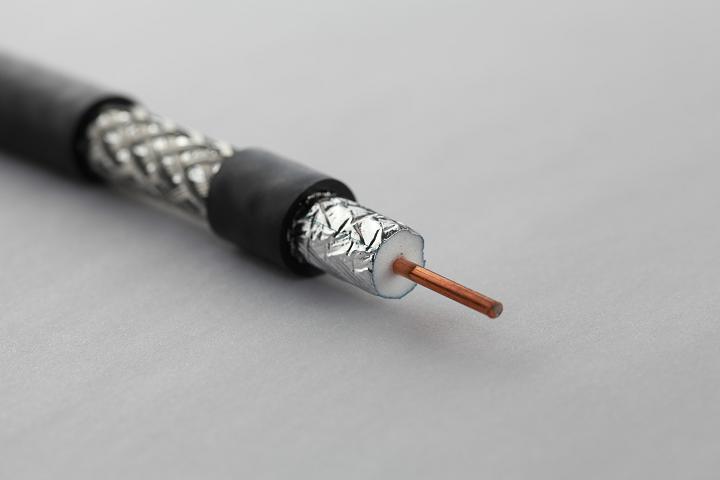

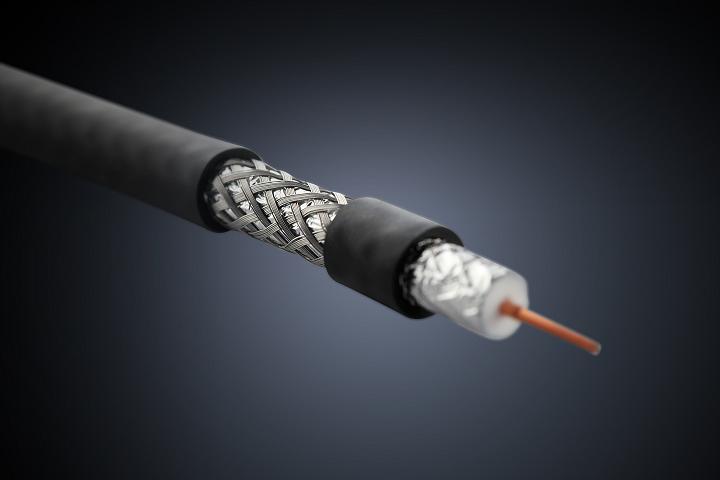

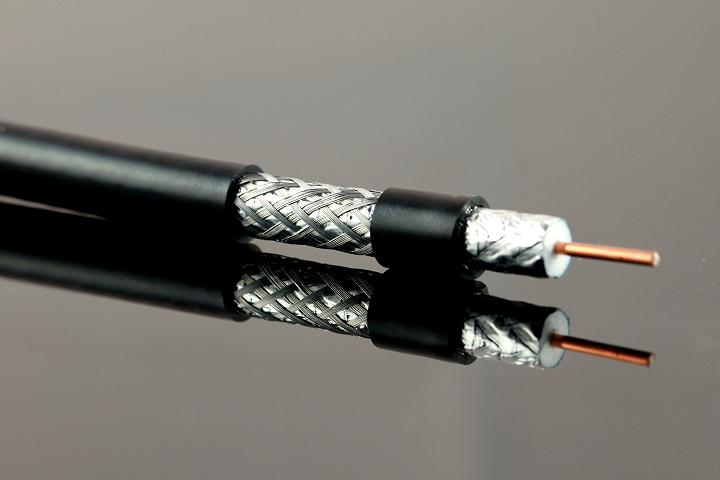

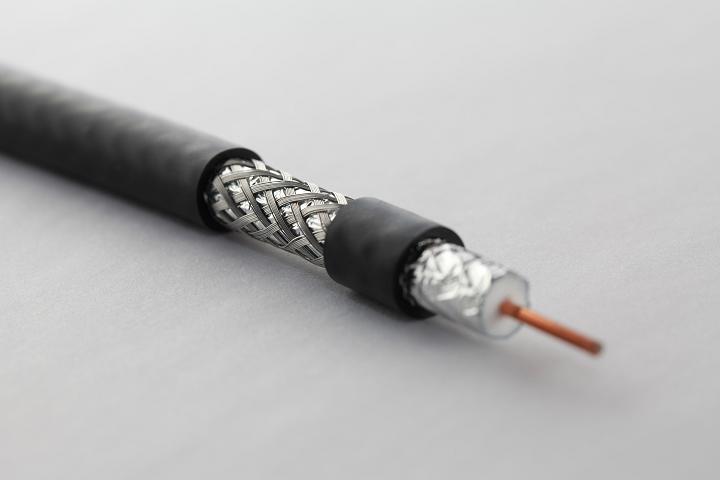

  • Name: RG11
Immediate Inquiry
*Email
*Content
Product Name
Your Name
Company
Tel./Fax
MSN/Skype
  • Specification
  • Packing
  • Electrical Properties
RG11 STANDARD
Article No:
TEST IS EXECUTED ON THE SAMPLE DRAWN AT
RANDOM,DETAILS ARE AS FOLLOWS
NORMINAL CENTRAL CONDUCTOR DIA. 1.63CCS+/-0.015 mm
NORMINAL INSULATION DIA. 7.11FPE+/-0.10 mm
NORMINAL JACKET DIA. 10.3+/-0.2 mm
NORMINAL CAPACITANCE 50+/-3 pF/m
NORMINAL IMPEDANCE 75+/-3 Ohm
VELOCITY OF PROPAGATION 85%
RETURN LOSS ≥20dB
INSULATION RESISTANCE(20 ºC) MΩ • km ≥5000
DIELECTRIC STRENGTH (CONDUCTOR TO SHIELD) ≥1.6 kV
ATTENUATION TESTED AT 68 ºF(20 ºC)
TESTED AT LENGTH 100m

FOR BEST ELETRICAL PERFORMANCE:
1.PRODUCTS SHOULD BE HANDLED WITH CARE.
2.STRONG ELECTROMAGENTIC FIELDS SHOULD BE AVOIDEO.
3.EXTREMELY HOT AND COLD ENVIRONMENTS SHOULD BE AVOIDED.
Wooden Spool
Spec. H/cm 40CM D/cm 35CM d/cm 15CM T/cm 1.1CM



Carton
Spec. a/cm 41CM b/cm 41CM h/cm 36.5CM
@  Frequency MHz dB/100ft(MAX) dB/100m(MAX)
5 0.38 1.25
55 0.96 3.15
250 2.05 6.72
300 2.25 7.38
450 2.75 9.02
600 3.18 10.43
750 3.65 11.97
865 3.98 13.05
1000 4.35 14.27
1450 5.42 17.78
1750 6.1 20.01
