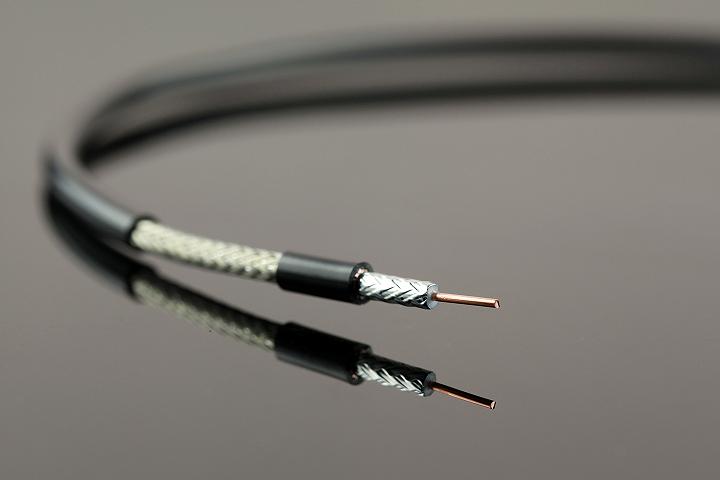

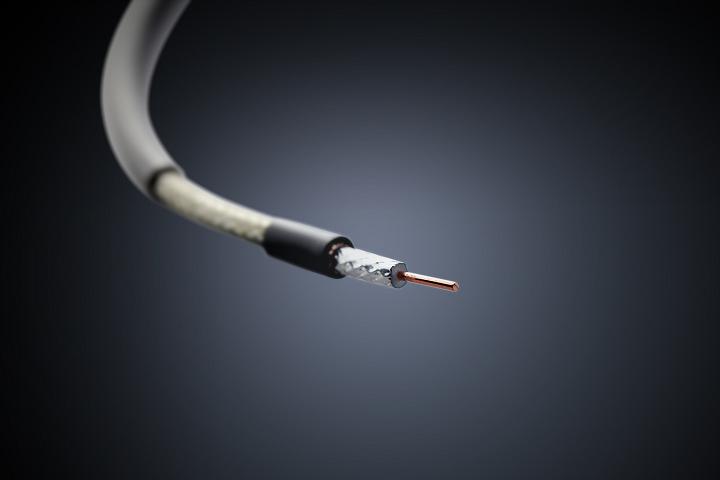

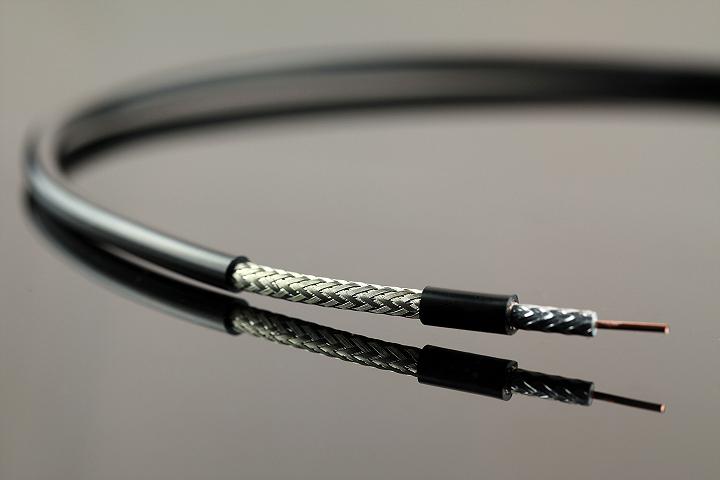

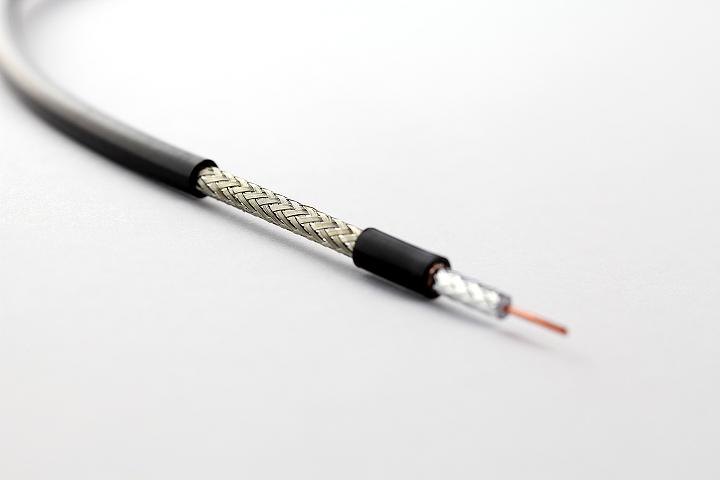

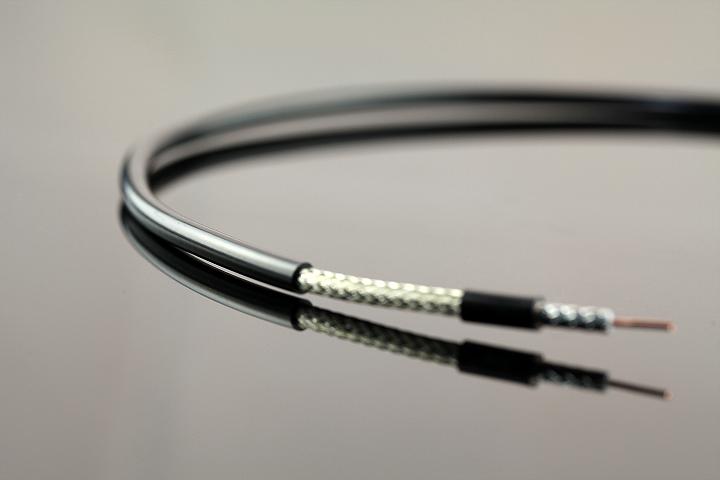

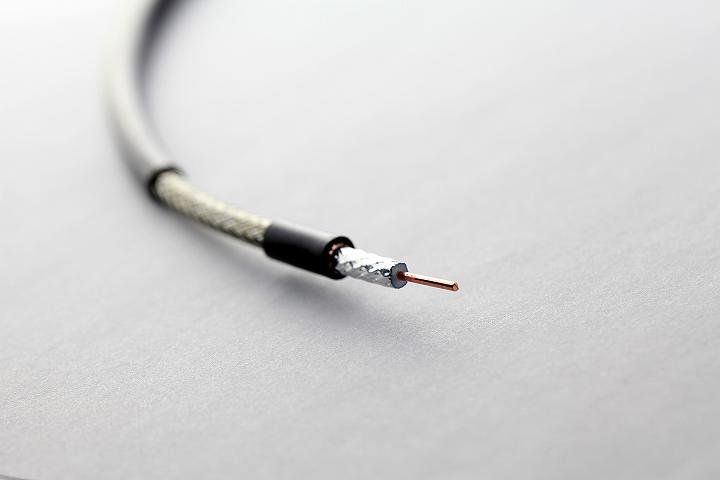

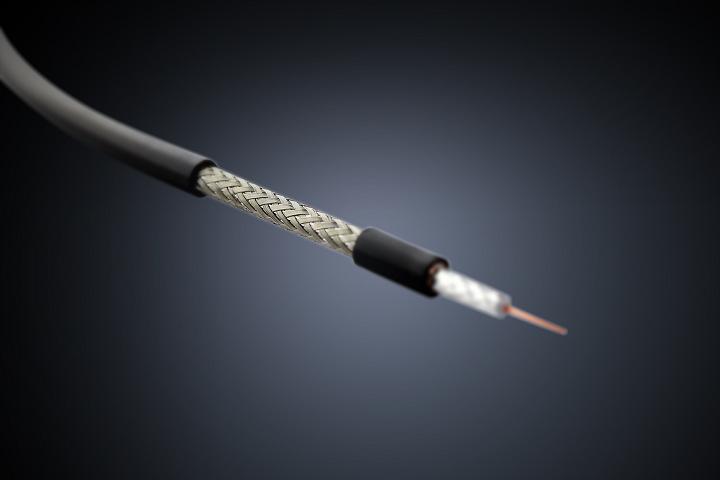

  • Name: RG58U
Immediate Inquiry
*Email
*Content
Product Name
Your Name
Company
Tel./Fax
MSN/Skype
  • Specification
  • Packing
  • Electrical Properties
RG58 C/U
Article No:
TEST IS EXECUTED ON THE SAMPLE DRAWN AT
RANDOM,DETAILS ARE AS FOLLOWS
NORMINAL CENTRAL CONDUCTOR DIA. 1.02cu+/-0.005 mm
NORMINAL INSULATION DIA. 2.9SPE+/-0.05 mm
NORMINAL JACKET DIA. 5.0+/-0.10 mm
NORMINAL CAPACITANCE 100+/-3 pF/m
NORMINAL IMPEDANCE 50+/-3 Ohm
VELOCITY OF PROPAGATION 66%
RETURNLOSS ≥20dB
DIELECTRIC STRENGTH (CONDUCTOR TO SHIELD) ≥1.0 kV
ATTENUATION TESTED AT 68 ºF(20 ºC)
TESTED AT LENGTH 100m

FOR BEST ELETRICAL PERFORMANCE:
1.PRODUCTS SHOULD BE HANDLED WITH CARE.
2.STRONG ELECTROMAGENTIC FIELDS SHOULD BE AVOIDEO.
3.EXTREMELY HOT AND COLD ENVIRONMENTS SHOULD BE AVOIDED.
Wooden Spool
Spec. H/cm 22CM D/cm 21CM d/cm 8CM T/cm 0.6CM



Carton
Spec. a/cm 45CM b/cm 23CM h/cm 22.5CM
@  Frequency MHz dB/100ft(MAX) dB/100m(MAX)
30 1.9 6.3
50 2.46 8.1
150 4.3 14.1
220 5.2 17.1
450 7.5 24.6
900 10.7 35
