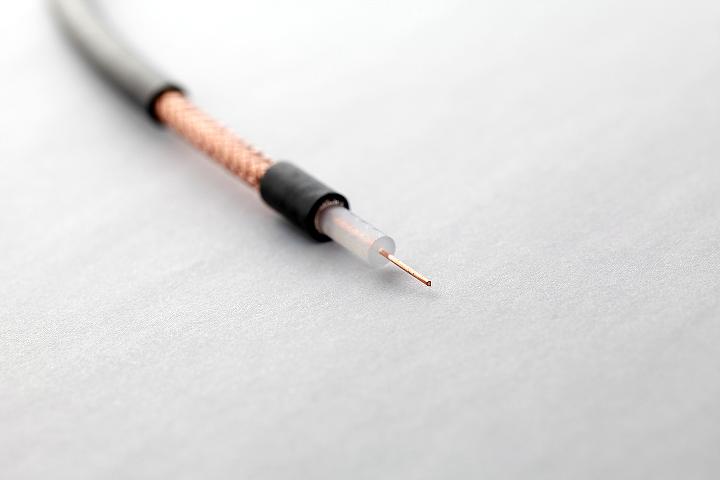

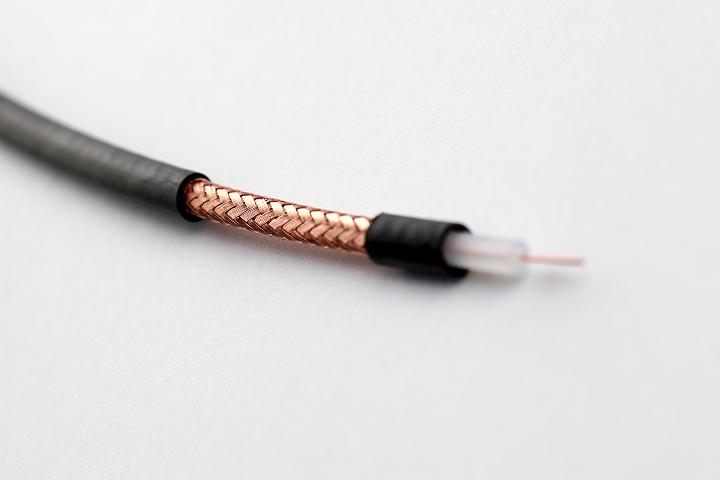

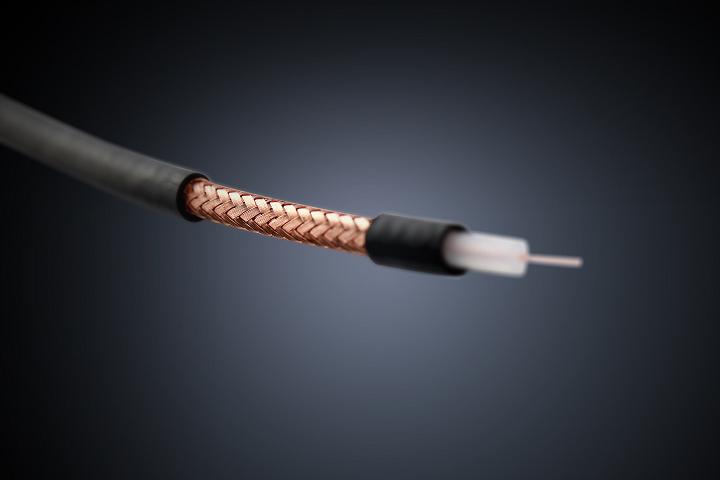

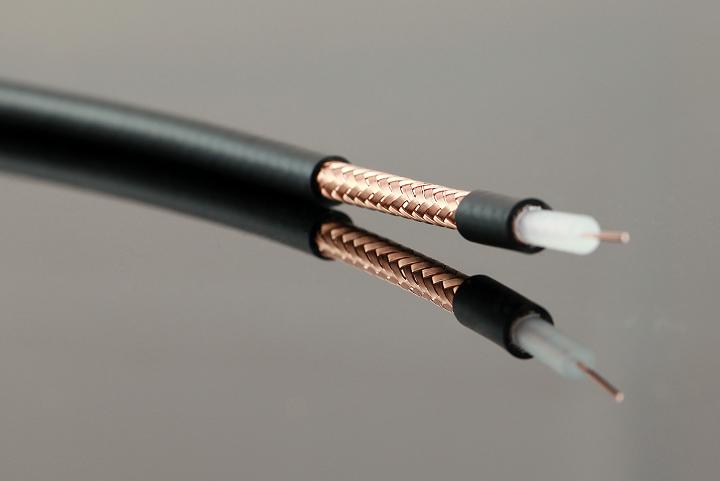

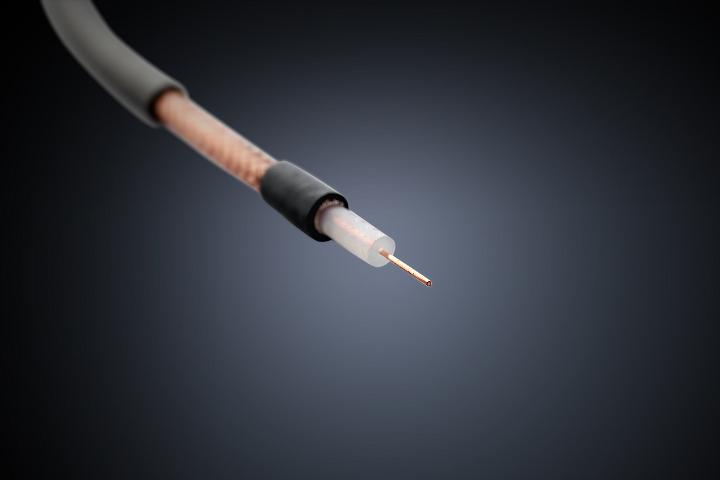

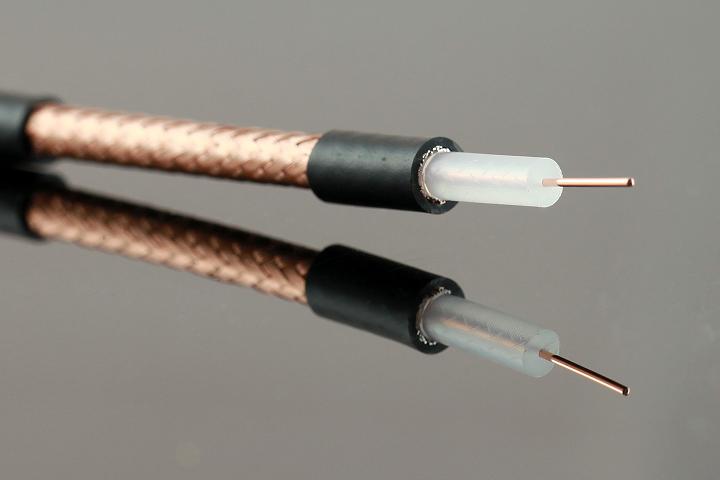

  • Name: RG59 C-U
Immediate Inquiry
*Email
*Content
Product Name
Your Name
Company
Tel./Fax
MSN/Skype
  • Specification
  • Packing
  • Electrical Properties
RG59 C/U
Article No:
TEST IS EXECUTED ON THE SAMPLE DRAWN AT
RANDOM,DETAILS ARE AS FOLLOWS
NORMINAL CENTRAL CONDUCTOR DIA. 0.64CU+/-0.01 mm
NORMINAL INSULATION DIA. 3.70SPE+/-0.10 mm
NORMINAL JACKET DIA. 6.1+/-0.2 mm
NORMINAL CAPACITANCE 100+/-3 pF/m
NORMINAL IMPEDANCE 75+/-3 Ohm
VELOCITY OF PROPAGATION 66%
RETURN LOSS ≥20dB
DIELECTRIC STRENGTH (CONDUCTOR TO SHIELD) ≥1.9 kV
ATTENUATION TESTED AT 68 ºF(20 ºC)
TESTED AT LENGTH 100m

FOR BEST ELETRICAL PERFORMANCE:
1.PRODUCTS SHOULD BE HANDLED WITH CARE.
2.STRONG ELECTROMAGENTIC FIELDS SHOULD BE AVOIDEO.
3.EXTREMELY HOT AND COLD ENVIRONMENTS SHOULD BE AVOIDED.
Wooden Spool
Spec. H/cm 27CM D/cm 24CM d/cm 8CM h/cm 0.6CM



Carton
Spec. a/cm 55CM b/cm 28CM h/cm 25.5CM
@  Frequency MHz dB/100ft(MAX) dB/100m(MAX)
10 1 3.3
20 1.43 4.7
50 2.28 7.5
100 3.38 11.1
200 5.12 16.8
500 8.23 27
800 10.7 35.1
950 11.8 38.7
1000 11.95 39.2
