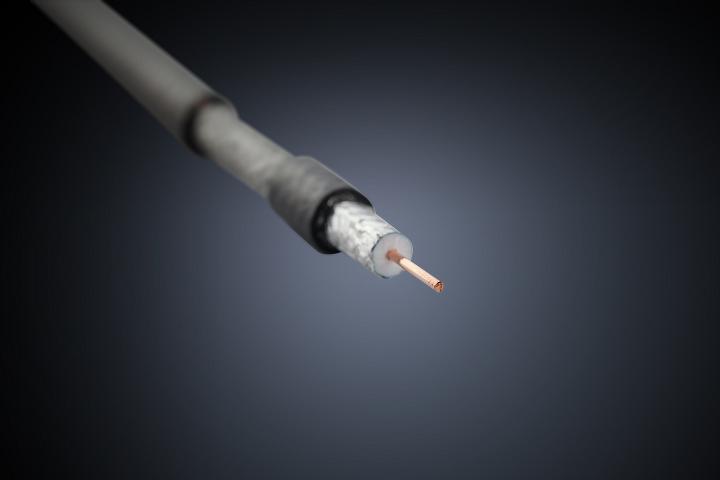

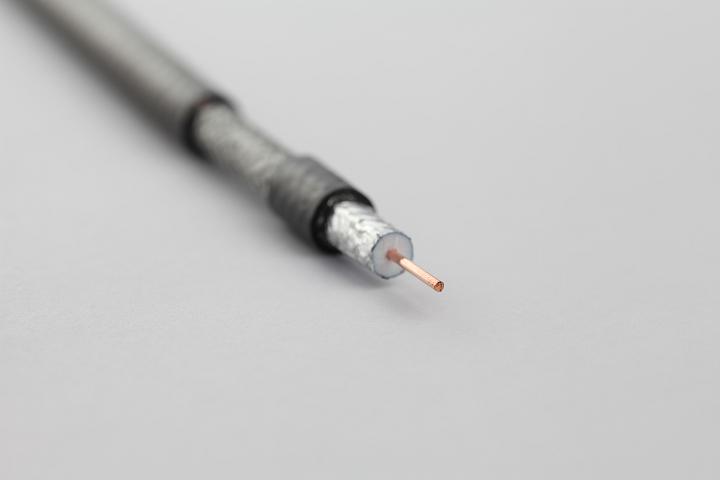

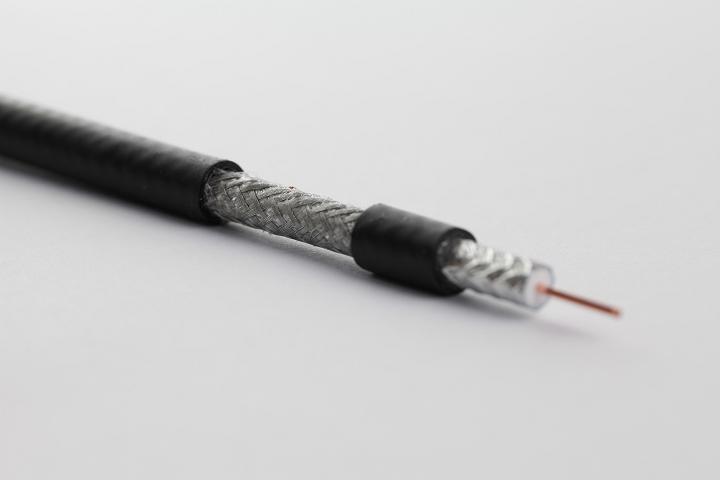

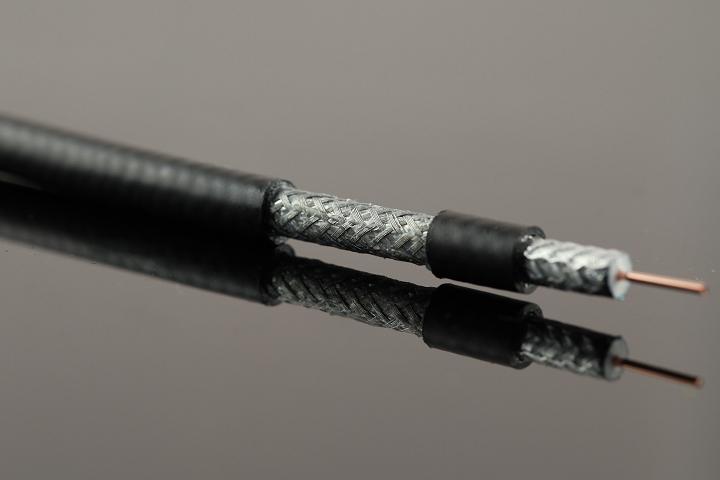

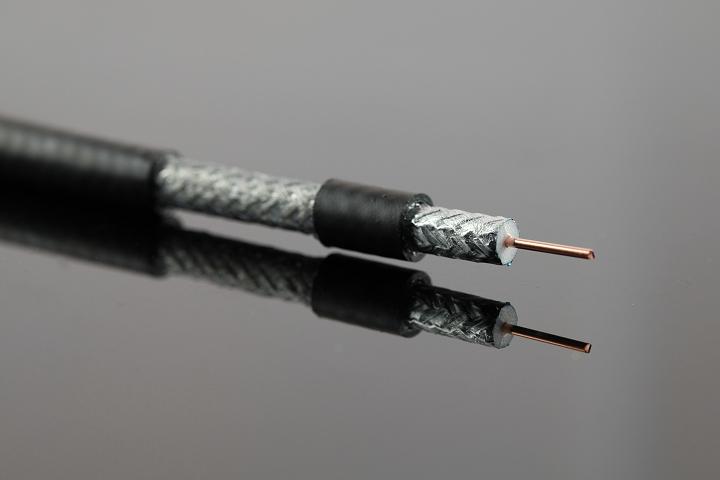

  • Name: RG6 JELLY
Immediate Inquiry
*Email
*Content
Product Name
Your Name
Company
Tel./Fax
MSN/Skype
  • Specification
  • Packing
  • Electrical Properties
RG6+油膏
Article No:
TEST IS EXECUTED ON THE SAMPLE DRAWN AT
RANDOM,DETAILS ARE AS FOLLOWS
NORMINAL CENTRAL CONDUCTOR DIA. 1.13CU+/-0.01 mm
NORMINAL INSULATION DIA. 4.8FPE+/-0.05 mm
NORMINAL JACKET DIA. 7.0+/-0.2 mm
NORMINAL CAPACITANCE 50+/-3 pF/m
NORMINAL IMPEDANCE 75+/-3 Ohm
VELOCITY OF PROPAGATION 85%
RETURN LOSS ≥20dB
INSULATION RESISTANCE(20 ºC) MΩ • km ≥5000
DIELECTRIC STRENGTH (CONDUCTOR TO SHIELD) ≥1.6 kV
ATTENUATION TESTED AT 68 ºF(20 ºC)
TESTED AT LENGTH 100m

FOR BEST ELETRICAL PERFORMANCE:
1.PRODUCTS SHOULD BE HANDLED WITH CARE.
2.STRONG ELECTROMAGENTIC FIELDS SHOULD BE AVOIDEO.
3.EXTREMELY HOT AND COLD ENVIRONMENTS SHOULD BE AVOIDED.
Wooden Spool
Spec. H/cm 29CM D/cm 28CM d/cm 10CM T/cm 1.0CM



Carton
Spec. a/cm 59CM b/cm 30CM h/cm 29.5CM
@  Frequency MHz dB/100ft(MAX) dB/100m(MAX)
50 -4.705
200 -9.053
400 -13.078
860 -19.916
1000 -21.048
1200 -24.048
1750 -29.798
